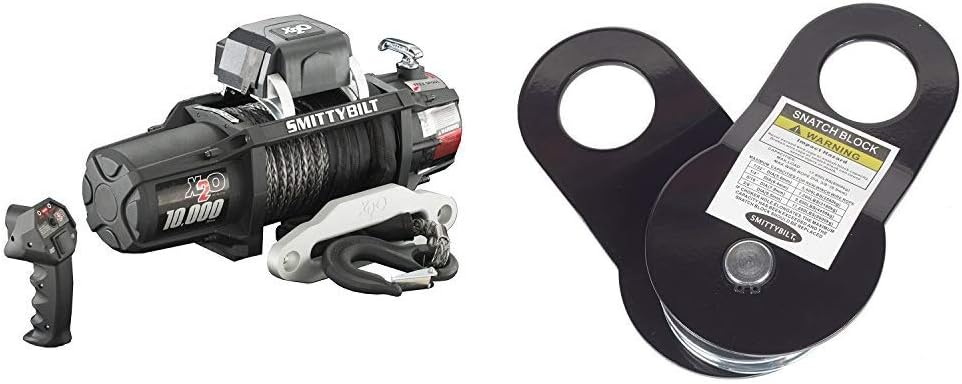

Waterproof Synthetic Rope Winch 12000 lb a7
Waterproof Synthetic Rope Winch 12000 lb a7

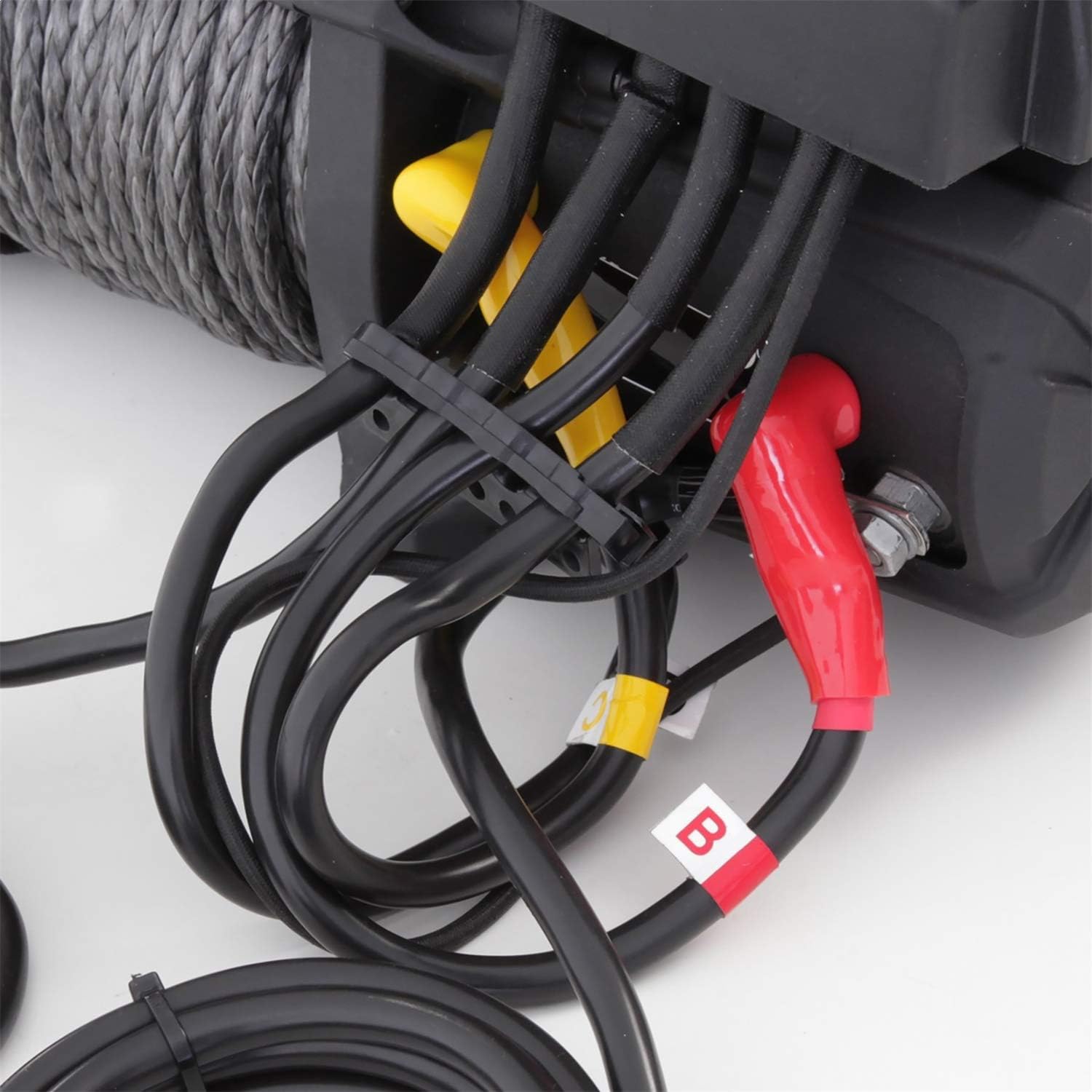

Your purchase includes: Smittybilt X20 COMP Synthetic Rope Winch, hawse fairlead with forged hook, all required power cables to hook up to your vehicle, rope sleeve and wireless remote
Winch can be operated with the remote or manually
Technical Specification: 6.6 HP Amphibious motor, 3-Stage Planetary Gear System, Stainless Steel Hardware, Dynamic Braking System, 2 Solenoid Mounting Options
Lifetime Mechanical Warranty, 5 Year Electrical Warranty
Overall Dimensions: 22.3'L x 5.4' W x 9.4'H. Mounting Bolt Pattern: 10” x 4.5”. Net weight: 67lbs.
Smittybilt 98512 winch has an IP68 waterproof rating, rated line pull of 12,000 pounds (5,454 kilograms) in a single line. Motor of 6.6hp series wound, the remote switch reaches 12 feet (3.7m) lead. The gear train is of revolutionary 3-stage planetary. Gear ratio is of 265:1, clutch: sliding ring gear, brake: automatic out-of-drum. Drum size: Diameter 2.5 inch, cable: 98.5 feet 3/8 inch diameter, cable type: synthetic rope, fairlead: hawse. Recommended battery: 650CCA minimum for winching, battery leads: 25 square millimeter, 72 inch (1.83m). Finish: textured black. Net Weight: 67 pounds (30.4 kilograms); mounting bolt pattern: 10.0 inch x 4.50 inch, overall dimensions: 22.3'L x 5.4' W x 9.4'H.
| Part Numbers | 10,000 lb | 12,000 lb | 15,500 lb / 17,500 lb |
|---|---|---|---|
| X20 series | #97510 | #97512 | #97515 / #97517 |
| X20 COMP series | #98510 | #98512 | n/a |
