Torque Adapter 200Nm 1/2 Drive with Backlight k7x
Torque Adapter 200Nm 1/2 Drive with Backlight k7x

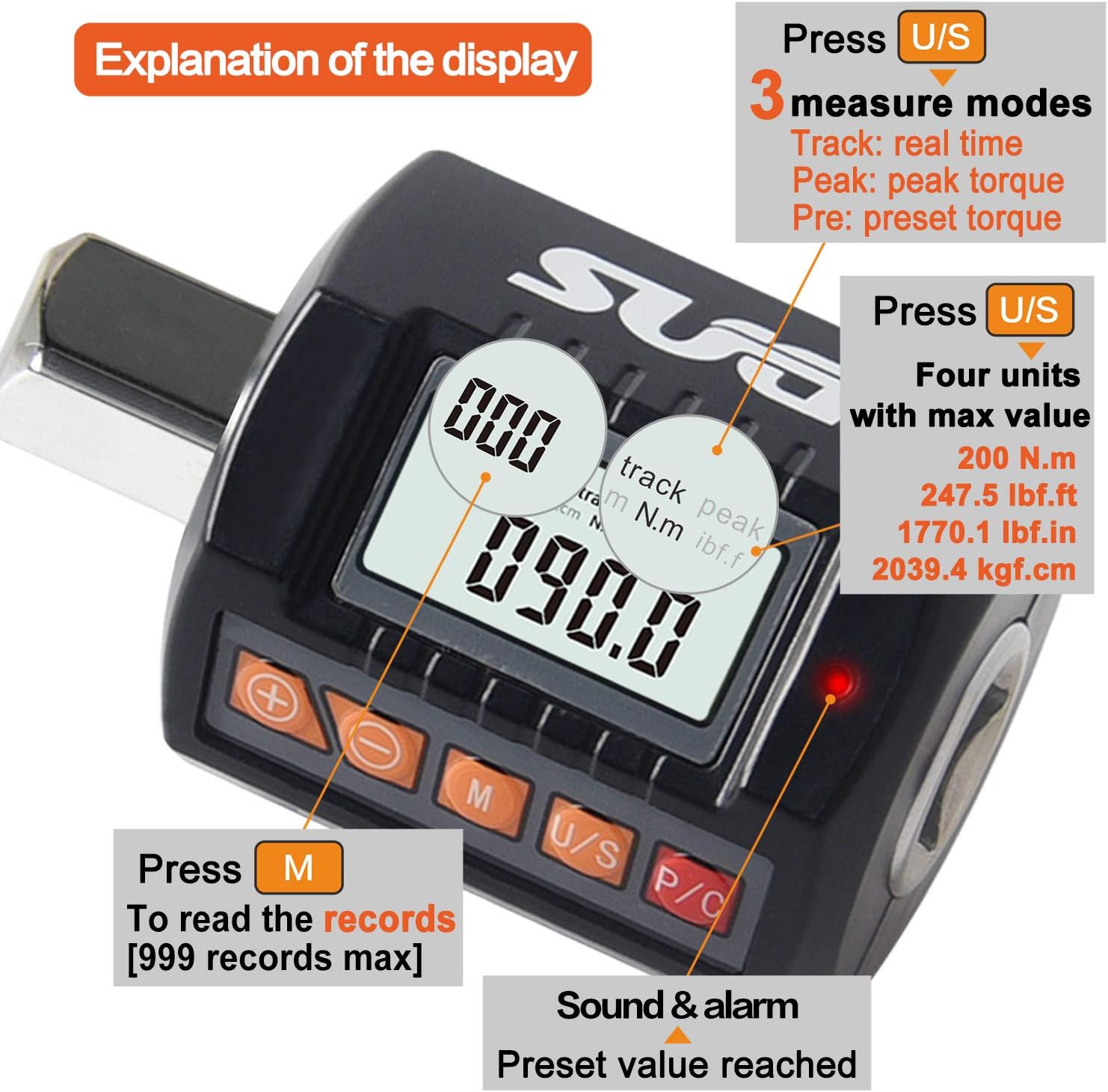

Three types of modes: Treak, peak, preset mode, it can be switched freely
Four torque units : kgf.cm, N.m, lbf.ft, lbf.in, it can be switched freely
High Precision: It can be operated both in the clockwise direction and the counterclockwise direction. Clockwise accuracy: ±2%, counterclockwise accuracy: ±2.5%.
Multi-function: it has sound and light alarm function and backlight function, it is convenient to operate at night or in places with insufficient light.
Overload Protection: After the product is forced to 120% of the full scale, the screen will display 'oLoRd', indicating that it is overloaded and cannot continue to be applied.
Specifications:
Material: ABS + steel
Drive Size: 1/2 '
Model: peak / track/Pre
Units: kgf.cm、N.m、lbf.ft、lbf.in
Accuracy: Clockwise ±2% / Counterclockwise ± 2.5%
Resolution: 0.1Nm
Range: 20-200 Nm (14.75 to 147.5ft-lbs.)
Battery: 2 * AAA batteries, 1.5 V (not included)
Accuracy guarantee range: 20-100% of the maximum torque
Automatic shutdown: 10mins (if the digital torque adapter is not used)
Maintenance & Storage
1. Excessive torque may cause damage or loss of accuracy (105% beyond the maximum torque range).
2. Do not shake the torque meter violently or drop the torque meter on the ground.
3. Do not place the torque meter in high temperature, high humidity or direct sunlight.
4. If you accidentally get the torque meter wet, wipe it with a dry towel immediately.
5. Do not put heavy pressure on the LCD screen.
Package include:
1 * Digital torque adapter
1 * User Manual
1 * Box
