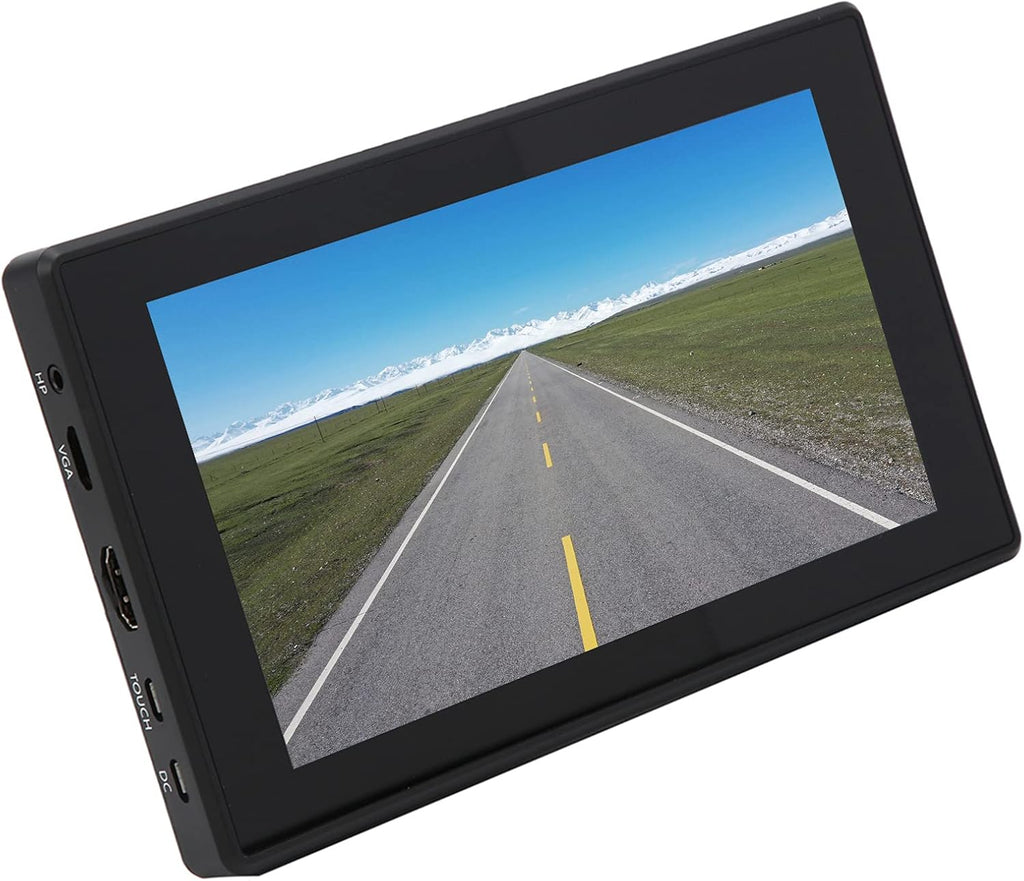

7-inch Capacitive Touch Monitor Tempered Glass q8

Feature:
1. 7‑inch capacitive touch IPS screen, 1024×600 resolution, giving you a clear visual experience.
2. Supports up to 5 touch points, the actual touch points are related to the software system.
3. With 3.5mm audio interface, support HD audio output, support VGA input, VGA adapter cable is required.
4. Multilingual OSD menu for power management, brightness/contrast adjustment, etc.

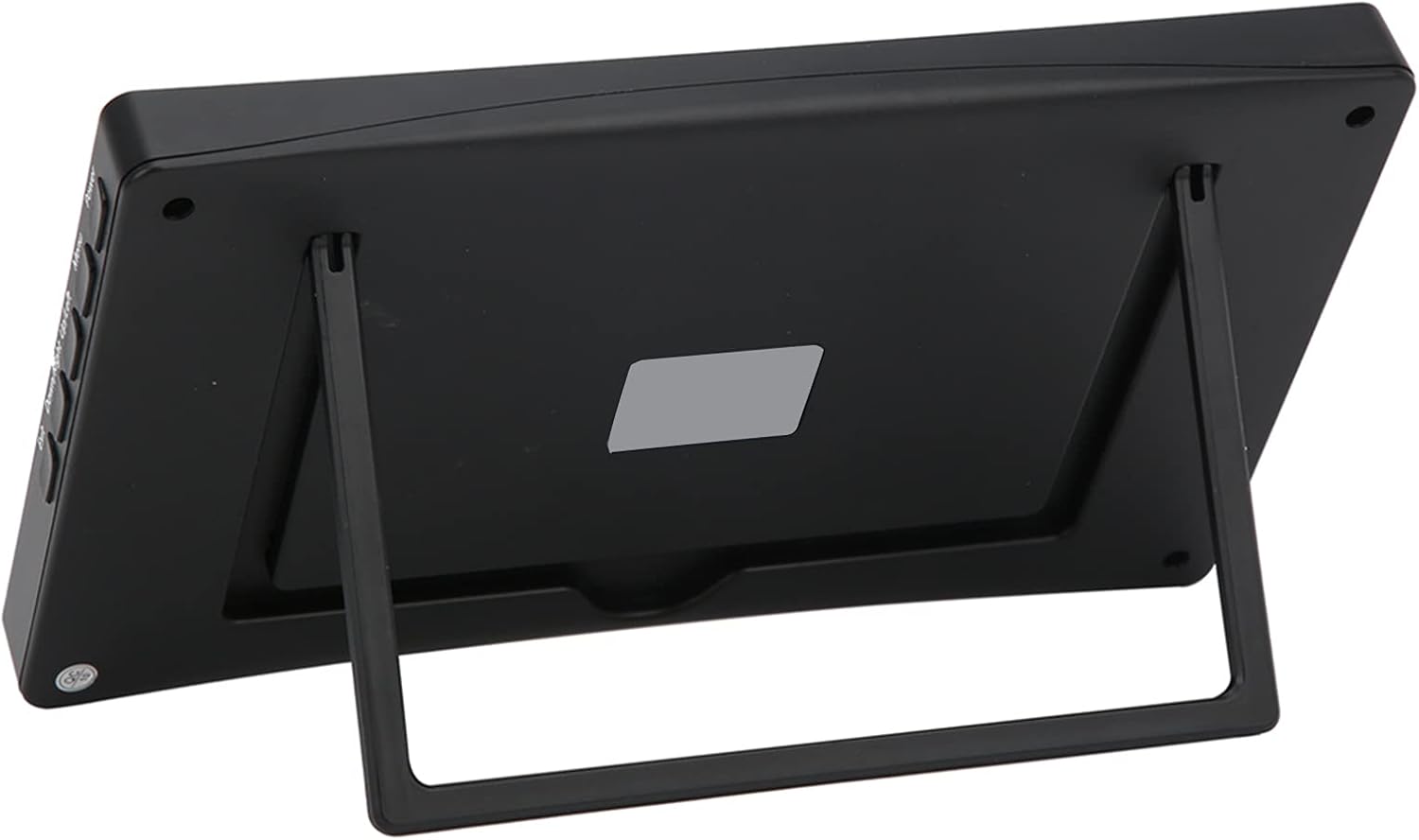

5. Tempered glass panel, hardness up to 6H, optional tilt angle 30°/50° for PC case.


Specification:



Item Type: Capacitive Touch Screen
Material: PC, tempered glass
Purpose: Display, DIY
Display Size: 7in
Resolution: 1024×600
Screen: Capacitive touch IPS screen
Display Interface: High Definition Multimedia Interface
Touch Interface: USB
Power Supply Voltage: 5V/2A
Scope of Application:
For Raspberry Pi
Support for Raspbian, five-point touch control, drive-free
Support for Ubuntu/Kali/WIN10 IoT, single touch, no drive
Support for Retropie, free drive
For Jetson Nano
Support for Ubuntu, single-touch, driver-free
computer
Support for Windows 10/8.1/8/7, five-point touch, driver-free
Game console
For Xbox360/PS4 etc.
How to Use:
1. Connect the touch screen to the PC. Here, we use a standard PC monitor and connect a 7-inch High Definition Multimedia Interface LCD (C).
2. We use the monitor as the main screen and the touch screen as the secondary screen.
3. By default, the touch screen can only control the cursor on the main screen. Here, we set it to control the secondary screen.
4. Open the control panel, then search for Tablet PC settings on the control panel, and then open the tool.

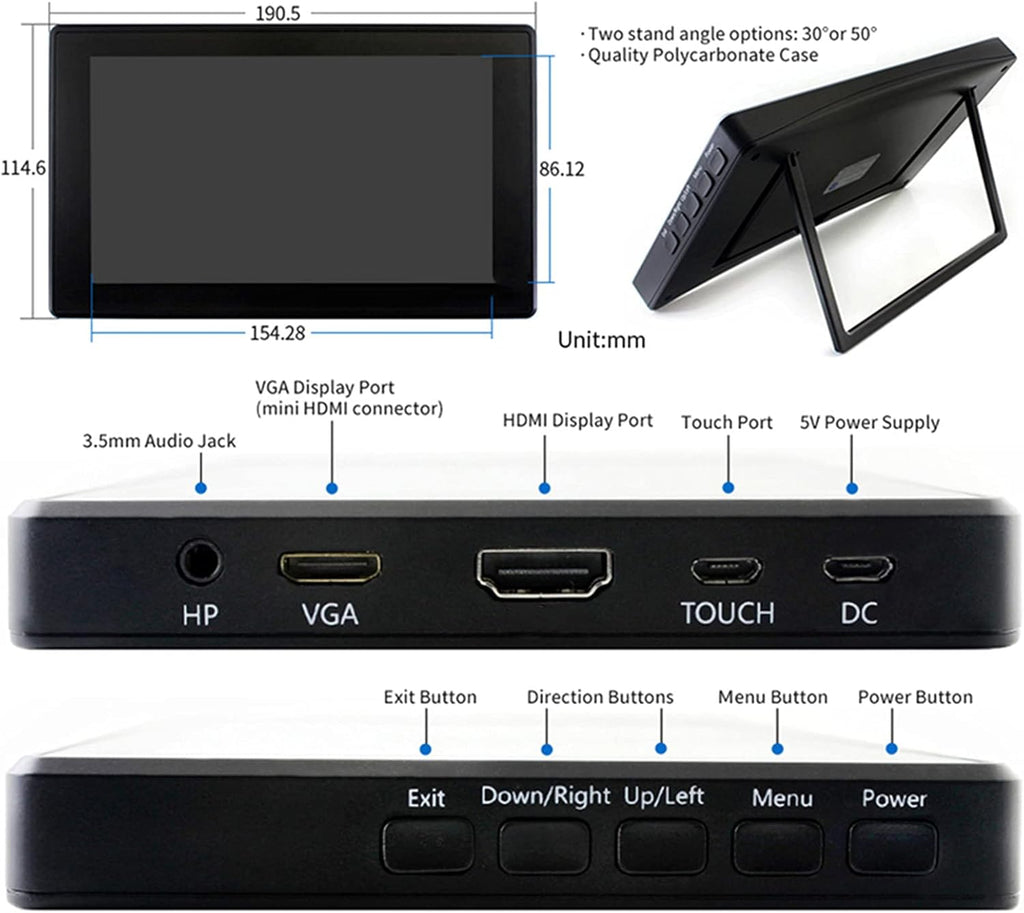

Product Size: Approx. 190.5 x 114.6mm / 7.5 x 4.5in
Screen Size: Approx. 154.28 x 86.12mm / 6.1 x 3.4in

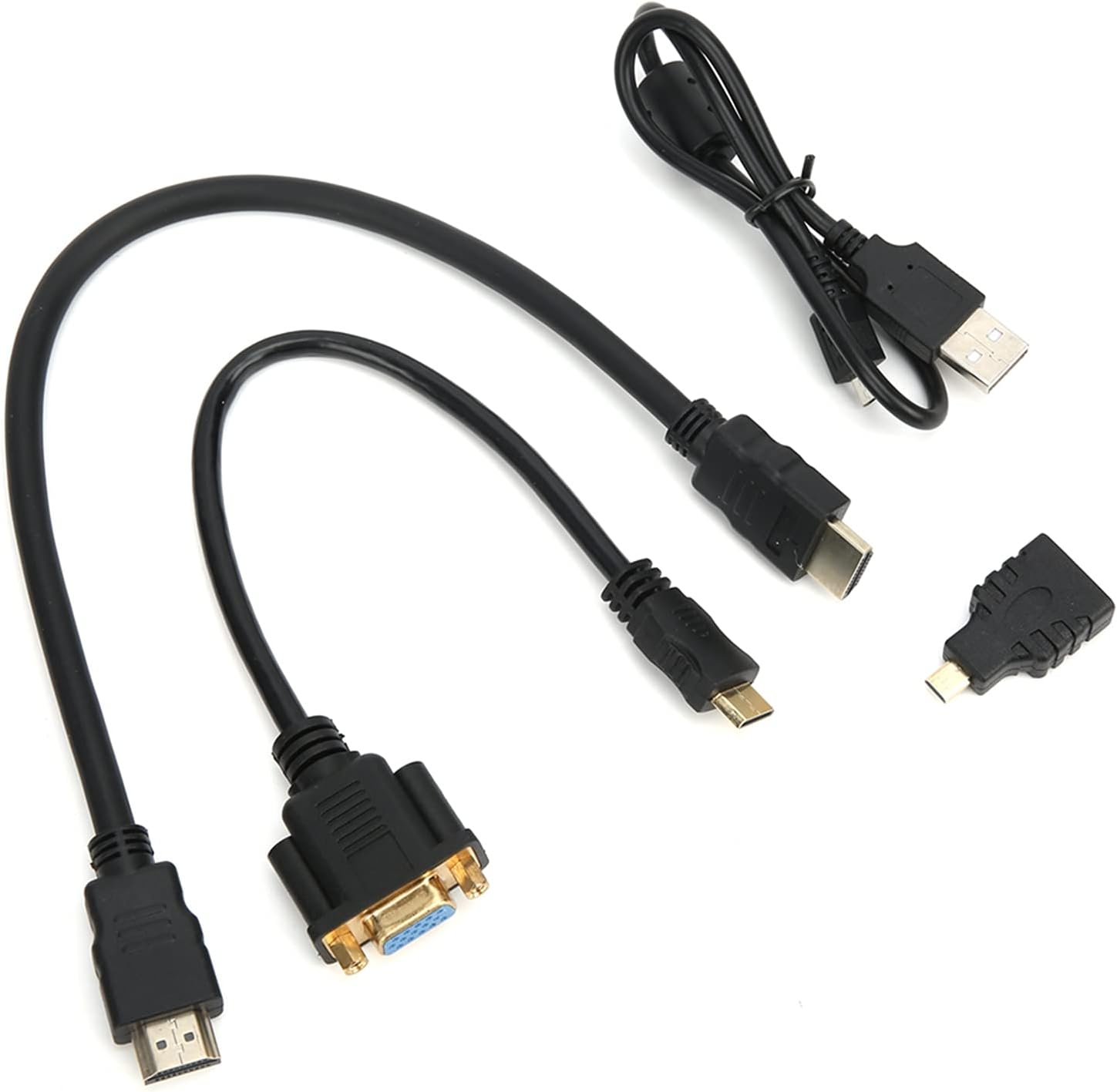

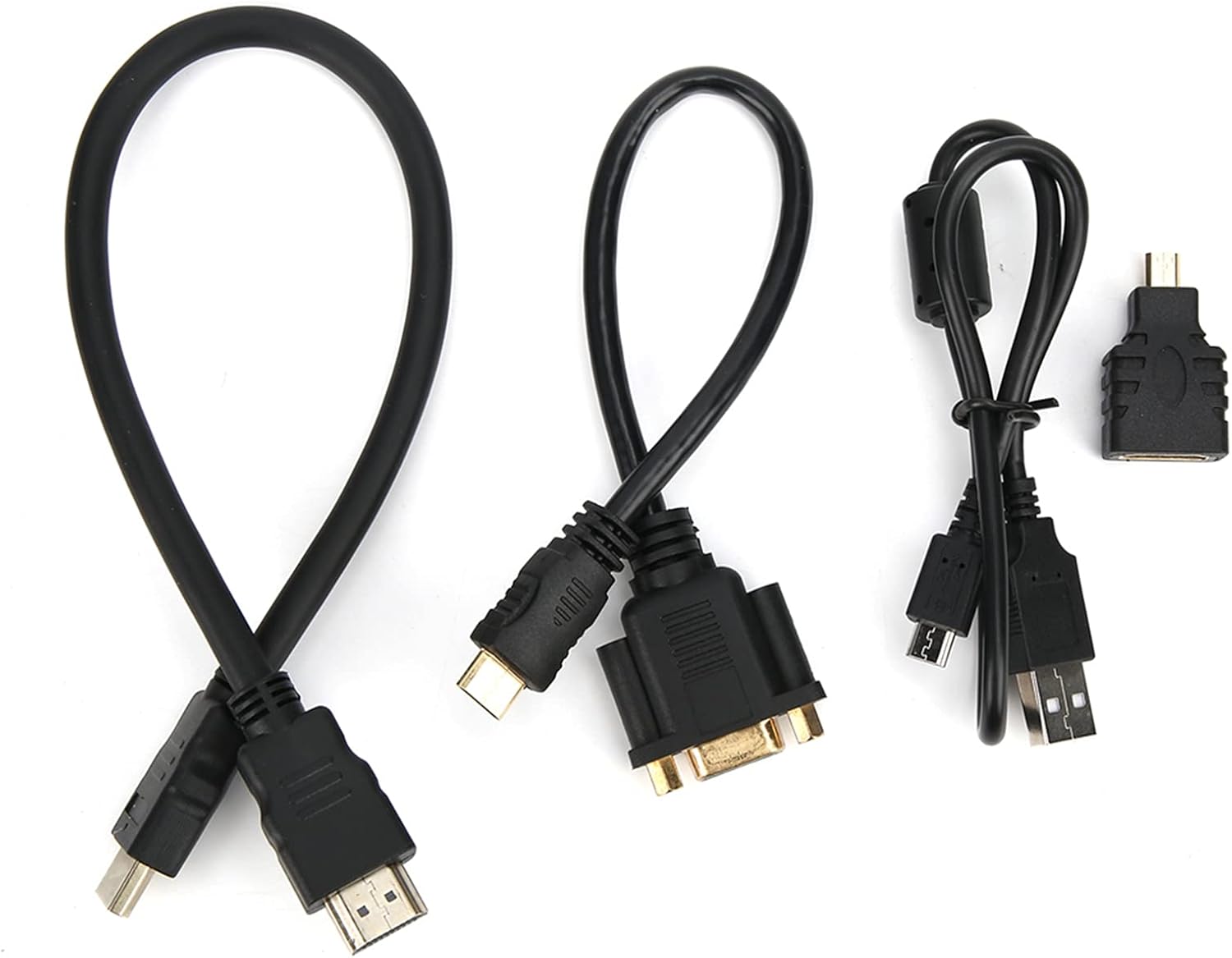

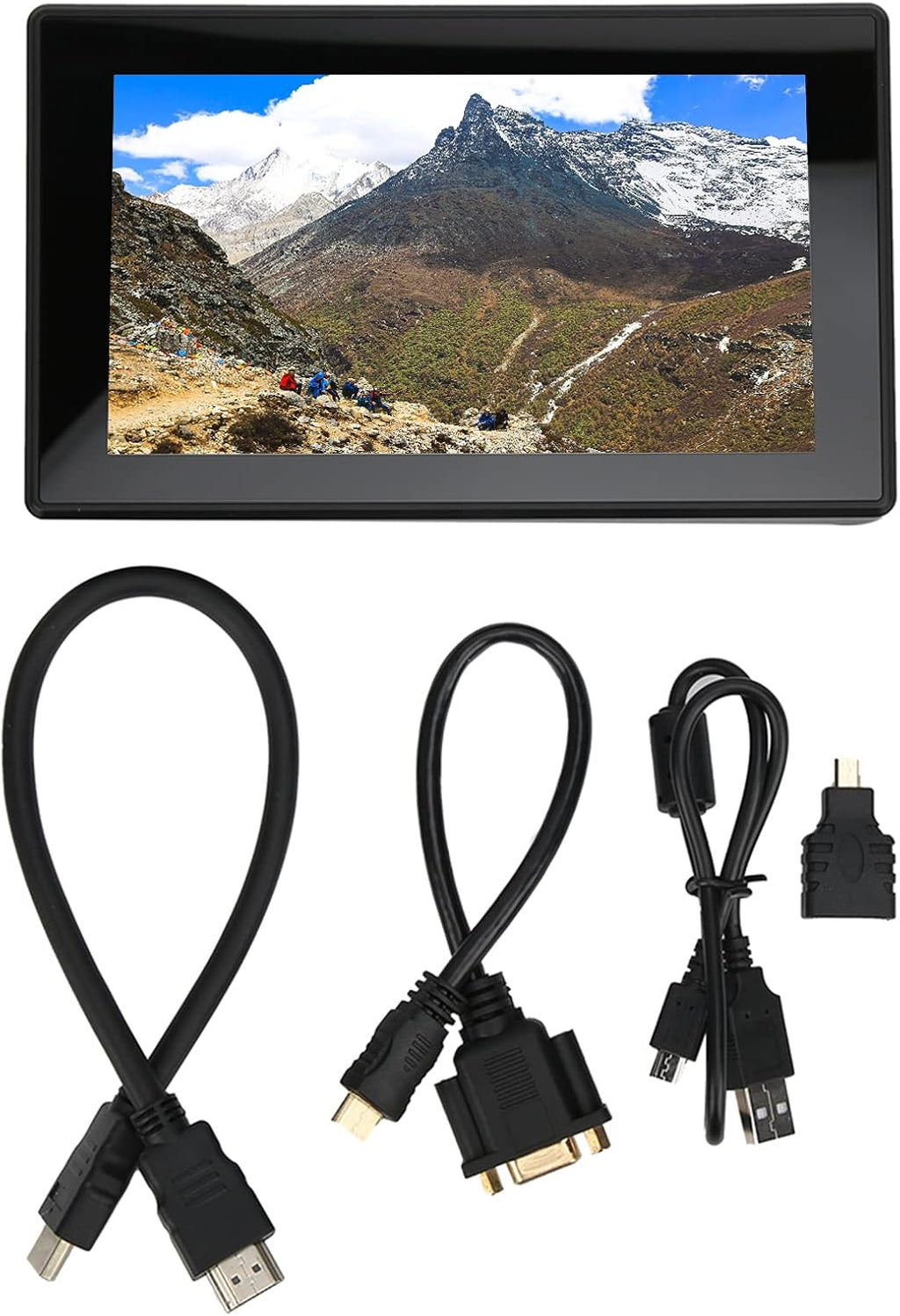

Package
